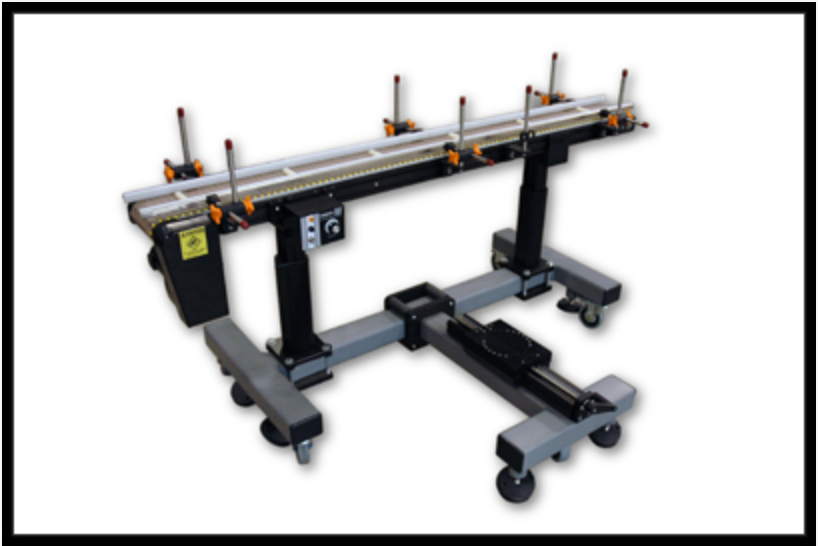

Model RLC150

Low Profile Mattop Chain Conveyor with Roller Leg Assembly

Features

  • Stainless Steel Fastners
  • Sealed for Life Bearings
  • Roller Leg Assembly which consists of: Vertical Upright, Horizontal Kit and Support Frame
  • Allen Bradley Flex4 Variable Speed AC Drive
  • AC Variable Speed Gear Motor
  • Rexnord Mattop Chain
  • Support Base with Double Locking Casters and Leveling Feet
  • Height Adjustment (+/-3″)
  • Fully Adjustable Guide Railing
  • Timing Belt Drive
  • Powder Coated / Anodized Aluminum and Powder Coated Steel Construction

Options

  • Remote Emergency Stop
  • Sensor Mount
  • Reflector Mount
  • 4-Plug Receptacle Strip
  • Scanner Mounting Adapter Plates
  • Scanner Control Mounting Plates
  • Ink Jet Mounting Adapter Plates

Standard Available Widths

  • 3″ – 24″ (3″ Increments)

***Custom Widths Available Upon Request***

Standard Available Lengths

  • 4ft, 6 ft, 8ft, 10ft, 12ft

***Custom Lengths Available Upon Request***

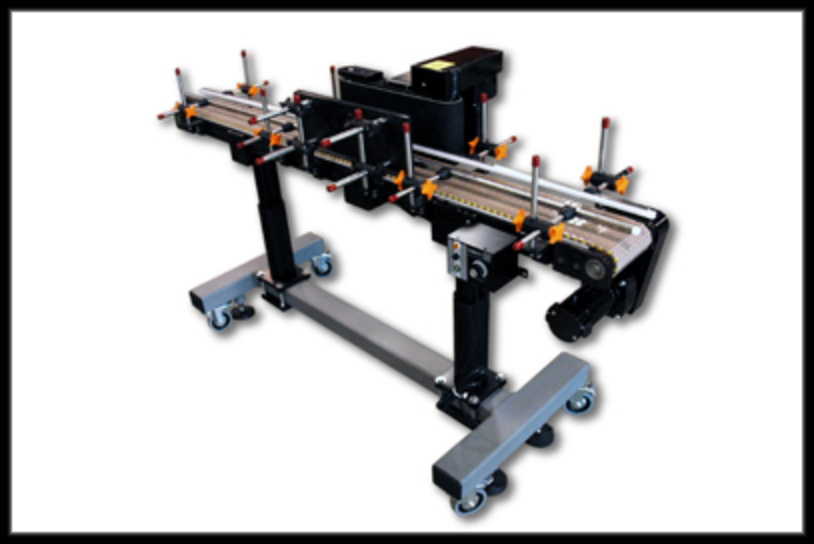

Model RLC155

Low Profile Mattop Chain Conveyor with Roller Leg Assembly and Wrap Station

Features

  • Stainless Steel Fastners
  • Roller Leg Assembly which consists of: Vertical Upright, Horizontal Kit and Support Frame
  • Allen Bradley Flex4 Variable Speed AC Drive
  • AC Variable Speed Gear Motor
  • Rexnord Mattop Chain
  • Support Base with Double Locking Casters and Leveling Feet
  • Height Adjustment (+/-3″)
  • Fully Adjustable Guide Railing
  • Timing Belt Drive
  • Powder Coated / Anodized Aluminum and Powder Coated Steel Construction
  • Wrap Station
  • Padded Back-Up Support Plate with Adjustment

Options

  • Remote Emergency Stop
  • Sensor Mount
  • Reflector Mount
  • 4-Plug Receptacle Strip
  • Scanner Mounting Adapter Plates
  • Scanner Control Mounting Plates
  • Ink Jet Mounting Adapter Plates

Standard Available Widths

  • 3″ – 24″ (3″ Increments)

***Custom Widths Available Upon Request***

Standard Available Lengths

  • 4ft, 6 ft, 8ft, 10ft, 12ft

***Custom Lengths Available Upon Request***

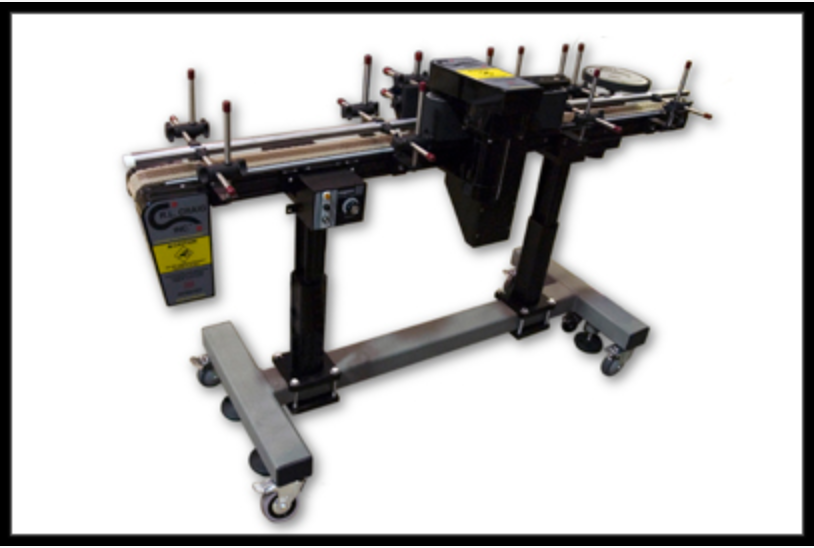

Model RLC157

Low Profile Mattop Chain Conveyor with Roller Leg Assembly, Wrap Station, and Metering Wheel

Features

  • Stainless Steel Fastners
  • Roller Leg Assembly which consists of: Vertical Upright, Horizontal Kit and Support Frame
  • Allen Bradley Flex4 Variable Speed AC Drive
  • AC Variable Speed Gear Motor
  • Rexnord Mattop Chain
  • Support Base with Double Locking Casters and Leveling Feet
  • Height Adjustment (+/-3″)
  • Fully Adjustable Guide Railing
  • Timing Belt Drive
  • Powder Coated / Anodized Aluminum and Powder Coated Steel Construction
  • Wrap Station
  • Padded Back-Up Support Plate with Adjustment
  • 8″ Dia. by 1″ Tall Neoprene Coated Metering Wheel

Options

  • Remote Emergency Stop
  • Sensor Mount
  • Reflector Mount
  • 4-Plug Receptacle Strip
  • Scanner Mounting Adapter Plates
  • Scanner Control Mounting Plates
  • Ink Jet Mounting Adapter Plates

Standard Available Widths

  • 3″ – 24″ (3″ Increments)

***Custom Widths Available Upon Request***

Standard Available Lengths

  • 4ft, 6 ft, 8ft, 10ft, 12ft

***Custom Lengths Available Upon Request***
